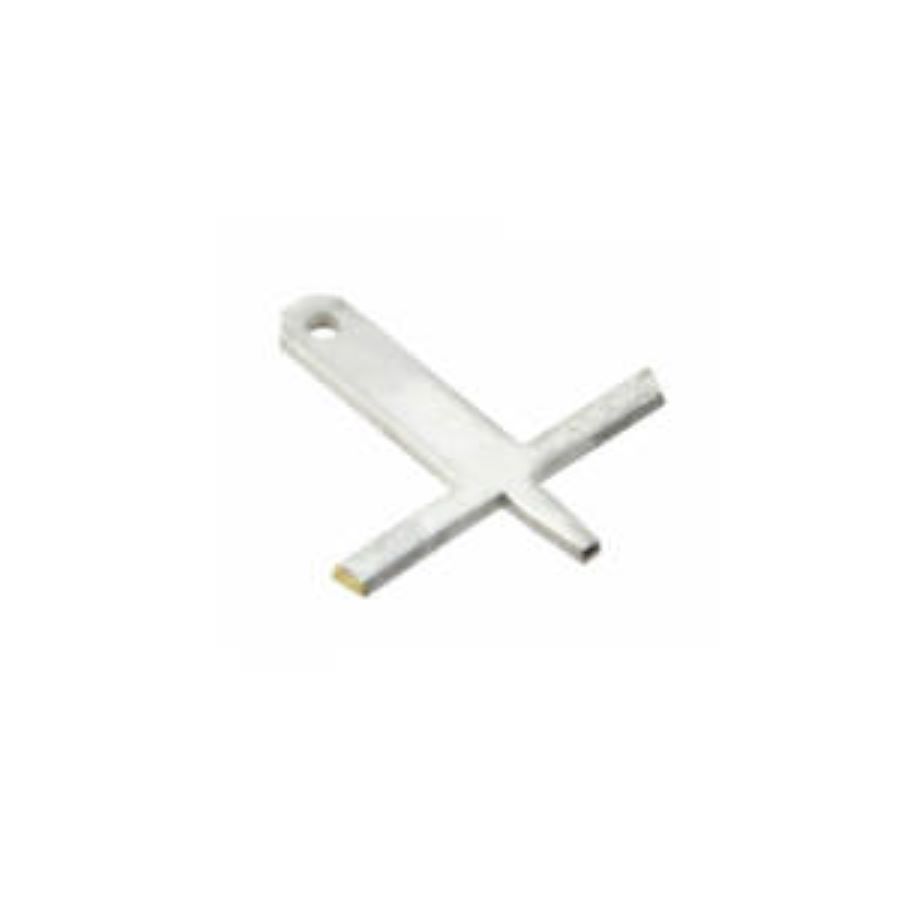

63756-1
Manufacturer:
TE Connectivity
Mfr.Part #:
63756-1
Datasheet:
Description:
Terminals Through Hole 17 AWG Socket (Female)
| Parameter | Value |
|---|---|
| Length | 15.8 mm |
| Termination | Tab |
| Height | 11.86 mm |
| Material | Brass |
| Packaging | Reel |
| Depth | 3.96 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Type | PC Tab |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Gender | Socket (Female) |
| Body Material | Brass |
| Tab Width | 2.794 mm |
| Hole Diameter | 1.1684 mm |
| Wire/Cable Gauge | 17 AWG |
| Insulation | Non-Insulated |
| Wire Gauge (Max) | 17 AWG |
| Wire Gauge (Min) | 19 AWG |
| Plating | Tin |
| Termination Style | Solder |
| Body Plating | Copper |
| PCB Thickness | 1.5748 mm |
| Insulated Wire Support | Yes |
| Mating Tab Width | 2.79 mm |
| Tab Length | 10.5918 mm |
| Tab Thickness | 812.8 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Stud Size | 2.8 mm x 0.81 mm |
Stock: 6180
Distributors
pcbx
pcbxUnit Price$0.58020
Ext.Price$0.58020
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.58020 | $0.58020 |
| 10 | $0.29010 | $2.90100 |
| 50 | $0.22315 | $11.15750 |
| 100 | $0.17165 | $17.16500 |
| 500 | $0.13204 | $66.02000 |
| 1000 | $0.10157 | $101.57000 |
| 3000 | $0.07813 | $234.39000 |
| 5000 | $0.06010 | $300.50000 |
| 10000 | $0.06010 | $601.00000 |
